[UE][번역] 언리얼5 렌더링 플로우 총정리(2024) 기초편 - 5 (PostProcess/Upscale)

요약

포스트 프로세스

• 렌더링된 이미지에 다양한 효과 적용
• UE의 포스트 프로세스 처리 순서는 소스코드에 정의되어 고정됨
• View Geometry -> DOF -> TSR -> Motion Blur -> Bloom -> Tonemapper -> UI -> Backbuffer Resolution

사용자 정의 포스트 프로세스

• Post Process Material:
  • 노드 기반 포스트 이펙트 제작 가능
  • Blendable Location으로 적용 시점 지정
• UE5.5부터 멀티패스 포스트 프로세스 지원

TSR (Temporal Super Resolution)

• 저해상도 렌더링 후 이전 프레임 정보로 고해상도 업스케일
• 성능 향상: 네이티브 4K(57.33ms) → 1080p에서 TSR로 4K 업스케일(26.08ms)
• 작동 방식:
  • 내부 해상도가 낮을수록 수렴에 더 많은 프레임 필요
  • 프레임레이트가 낮으면 수렴 시간 증가 (30fps는 60fps의 2배 시간 소요)
• 제약사항:
  • 화면 급격한 움직임 시 흐림 발생 가능
  • 렌더링과 무관한 부분에서 처리 지연 시에도 흐림 발생
• stat tsr 명령어: TSR의 수렴 시간과 깜빡임, 지연 등의 지표 확인

GPU 벤더 특화 업스케일 대안

• AMD FSR: AMD 그래픽 카드 최적화 업스케일
• NVIDIA DLSS: NVIDIA 그래픽 카드 최적화 업스케일
• GPU가 고정된 환경에서는 이러한 대안 고려 가능

---

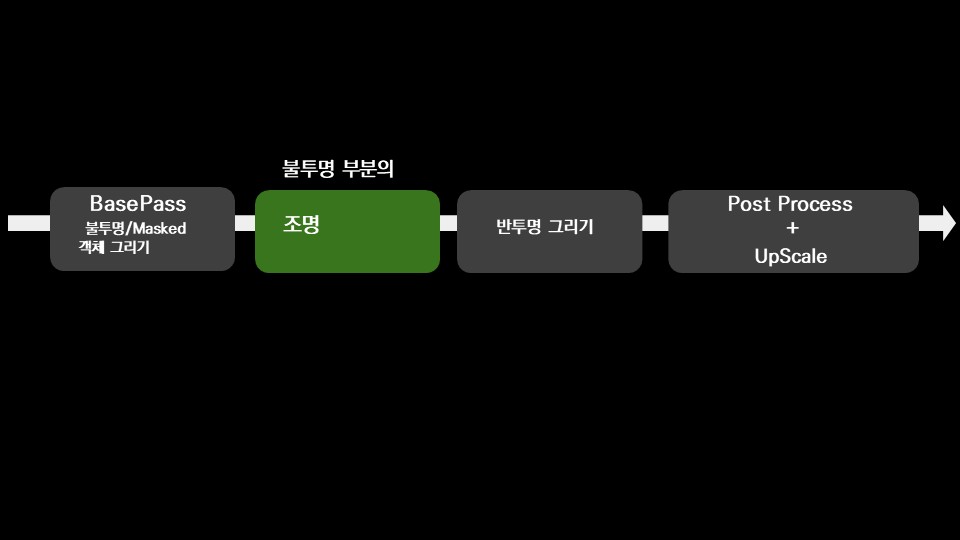

Post Process + Upscale 과정



Post Process Material



TSR
